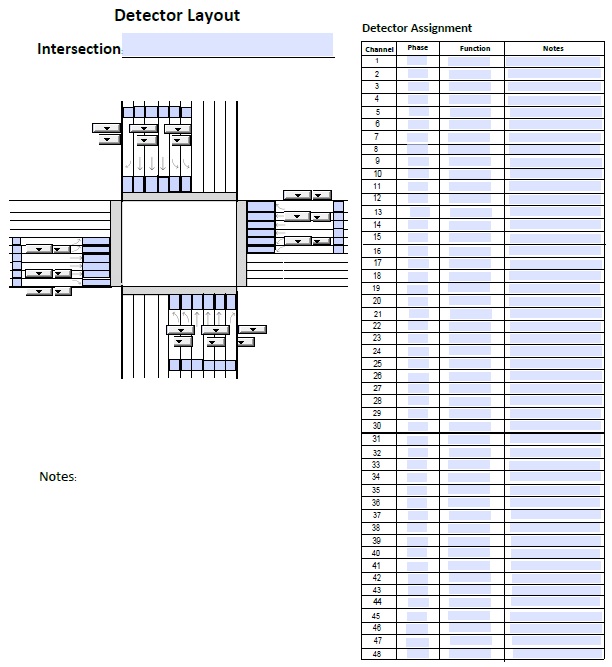

The Detector Layout Form provides a bird's eye view of your intersection with the controller's detector assignment for each movement.

The intention of this form is to make a simple visual for the user to quickly refer to the intersection's (lane by lane) detector to phase assignment.

Fully customizable, the user will input detector assignment (that's already assigned in the controller) into the form fields for each detection zone.

Once filled out, it can be saved as a PDF on your field laptop and/or a print out can be placed in the traffic signal cabinet.
